基于 eBPF 的 prometheus 监控方案

2021年4月13日 | 由 梁金荣 | 2000字 | 阅读大约需要4分钟 | 归档于 eBPF |

1. 前言

Prometheus 是高扩展性的监控和报警系统。它采用拉取策略获取指标数据,并规定了获取数据的API,用户可以通过exporter收集系统数据。eBPF Exporter 是一个将自定义BPF跟踪数据导出到prometheus的工具,它实现了prometheus获取数据的API,prometheus可以通过这些API主动拉取到自定义的BPF跟踪数据。具体来说,我们只需要编写一个yaml的配置文件,在配置文件中嵌入BPF代码,运行ebpf_exporter就可以实现导出BPF跟踪数据,而这些数据是可以被prometheus主动拉取到的,进而实现BPF跟踪数据的存储、处理和可视化展示。

2. ebpf_exporter 环境搭建

ebpf_exporter 运行依赖环境:

  • bcc环境(环境配置可参考http://kerneltravel.net/blog/2020/ebpf_ljr_no1/)
  • go语言环境(环境配置可参考https://blog.csdn.net/qq_34258344/article/details/106270047)

安装最新ebpf_exporter:

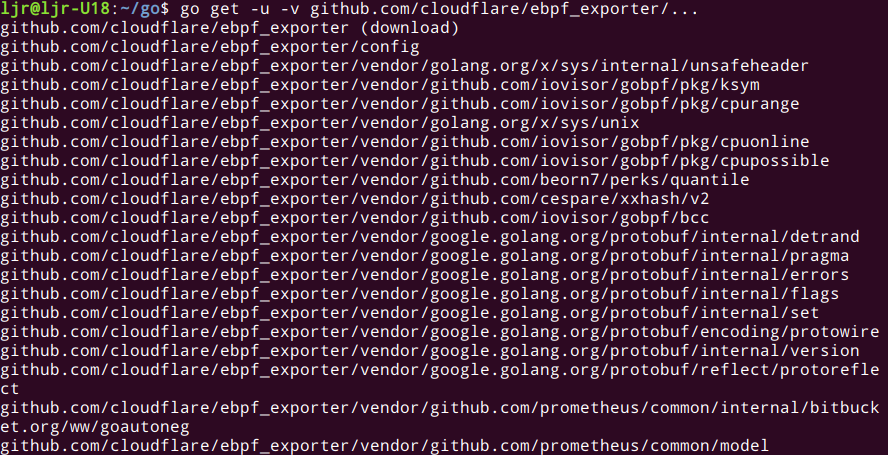

$ go get -u -v github.com/cloudflare/ebpf_exporter/...

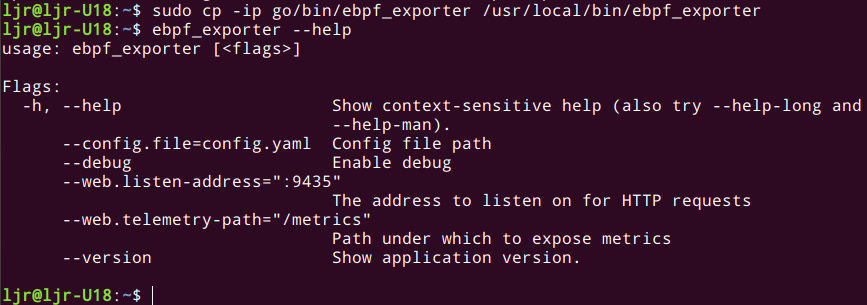

cp -ip go/bin/ebpf_exporter /usr/local/bin/ebpf_exporter

如果安装不成功的话,第一请检查ebpf_exporter安装路径,第二请检查bcc环境,例如libbpf库的不同版本也会导致ebpf_exporter安装失败。

运行一个eBPF程序提取磁盘IO延时的示例:

$ sudo ebpf_exporter --config.file=src/github.com/cloudflare/ebpf_exporter/examples/bio.yaml

输出结果如下:

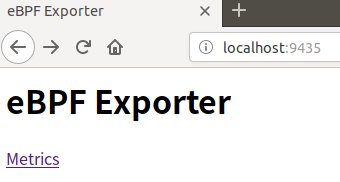

浏览器访问9435端口,输出结果如下:

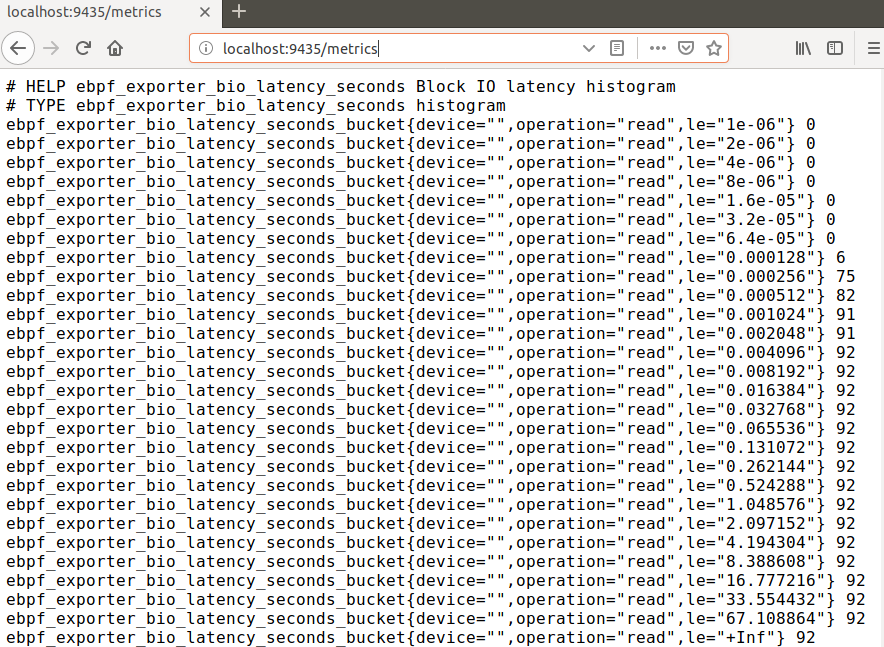

访问http://localhost:9435/metrics就可以看到 ebpf_exporter 导出的数据:

其中 HELP 用于解释当前指标的含义,TYPE 则说明当前指标的数据类型。

3. Prometheus 与 Grafana 配置

prometheus 和 grafana 环境搭建,prometheus配置拉取数据,grafana 可视化展示请参考这篇,本文不再赘述。

http://kerneltravel.net/blog/2021/ljr-ebpf10/

Prometheus拉取ebpf_exporter导出的数据,参考配置:

# my global config
global:
  scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
  - static_configs:
    - targets:
      # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'
    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.
    static_configs:
    - targets: ['localhost:9090']

    # 采集ebpf_exporter监控数据
  - job_name: 'ebpf_node'
    static_configs:
    - targets: ['localhost:9435']

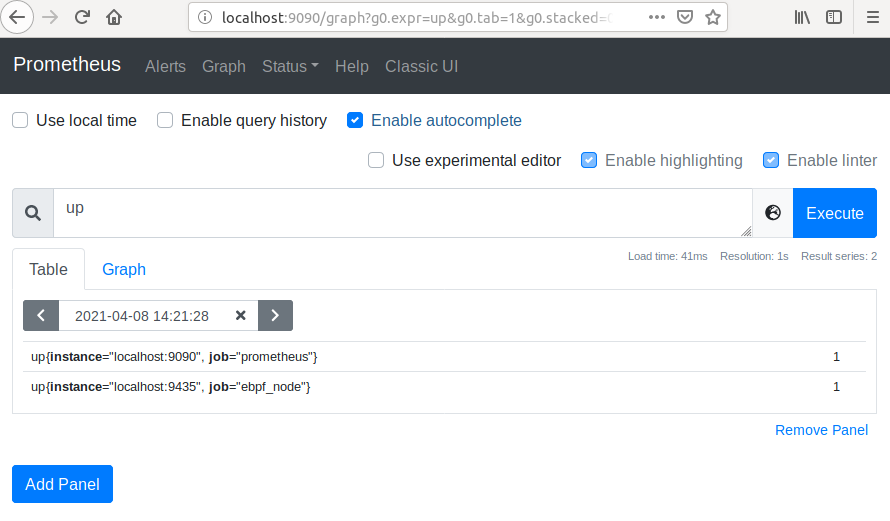

下图显示了prometheus已经激活了ebpf_exporter的job。

4. ebpf_exporter 代码分析

ebpf_exporter 使用 YAML 文件进行配置,可自定义eBPF要提取的系统数据,配置文件主要包括三个部分:

  • 第一部分定义prometheus可识别的特定格式的数据;
  • 第二部分定义附加到BPF程序的探针;
  • 第三部分定义要执行的BPF程序。

下面通过分析一个简单的例子来说明,该示例的功能为统计系统中启动计时器的次数。

4.1 配置文件代码

programs:
  - name: timers
    metrics:
      counters:
        - name: timer_start_total
          help: Timers fired in the kernel
          table: counts
          labels:
            - name: function
              size: 8
              decoders:
                - name: ksym
    tracepoints:
      timer:timer_start: tracepoint__timer__timer_start
    code: |
      BPF_HASH(counts, u64);

      // Generates function tracepoint__timer__timer_start
      TRACEPOINT_PROBE(timer, timer_start) {
          counts.increment((u64) args->function);
          return 0;
      }

4.2 运行结果

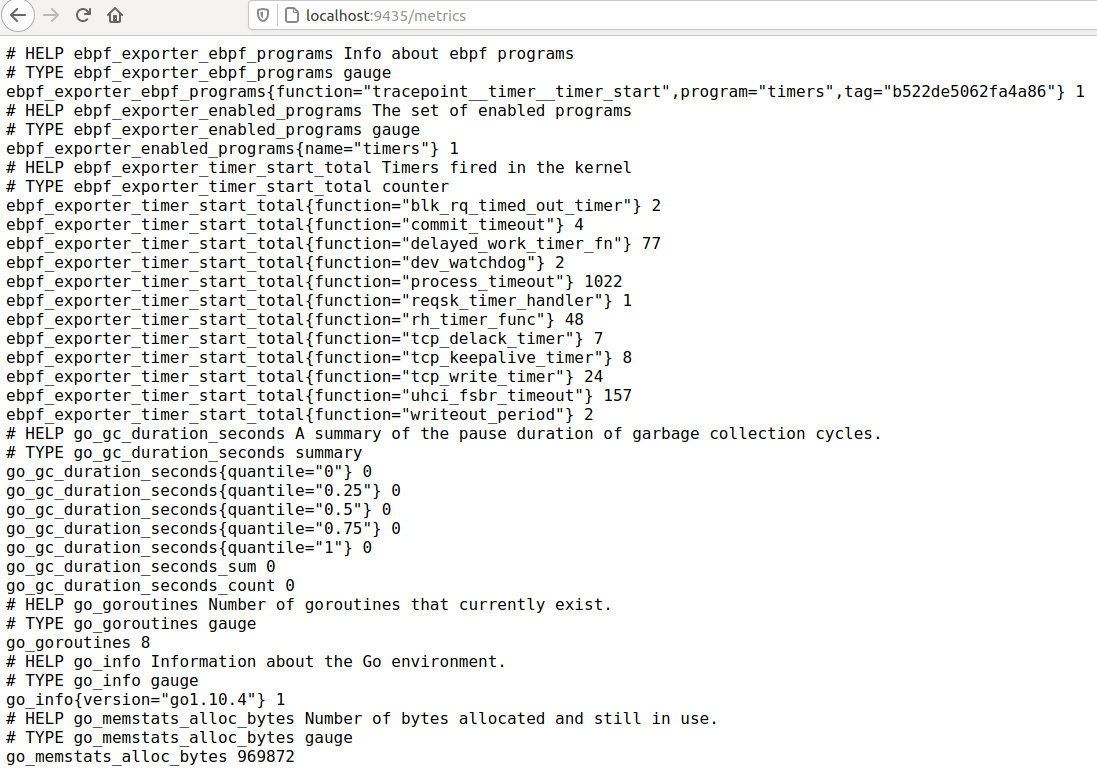

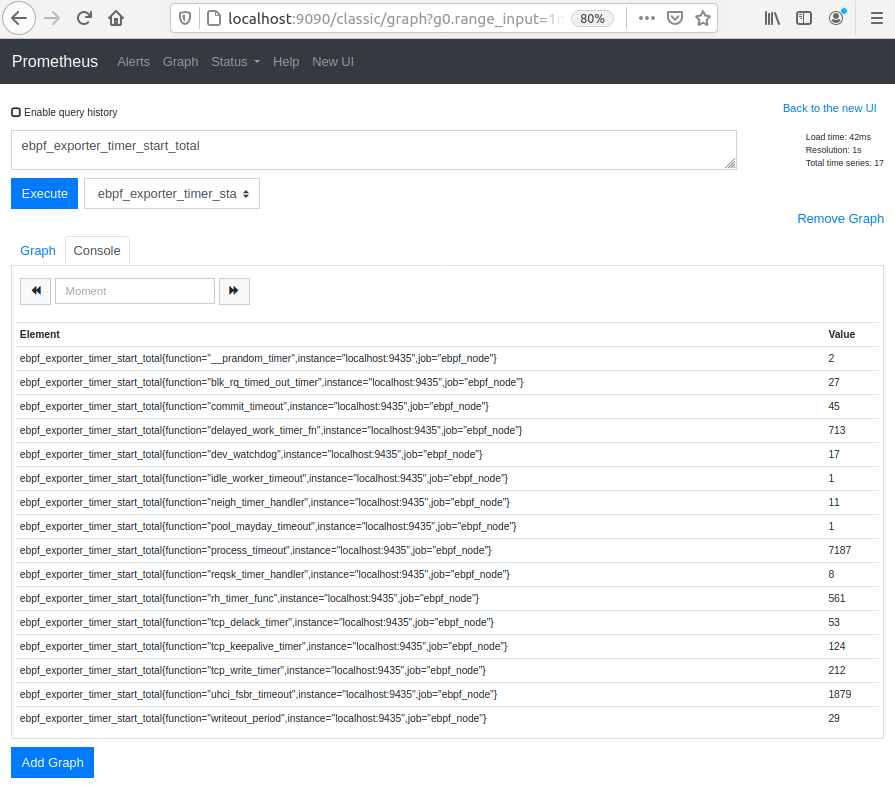

从 ebpf_exporter 导出的数据可以看到,我们使用 tracepoint 跟踪内核 timer_start 函数,获取到了内核启动计时器的函数和启动次数统计的数据,该数据通过9435端口暴露出去了,下图展示了prometheus获取到的数据:

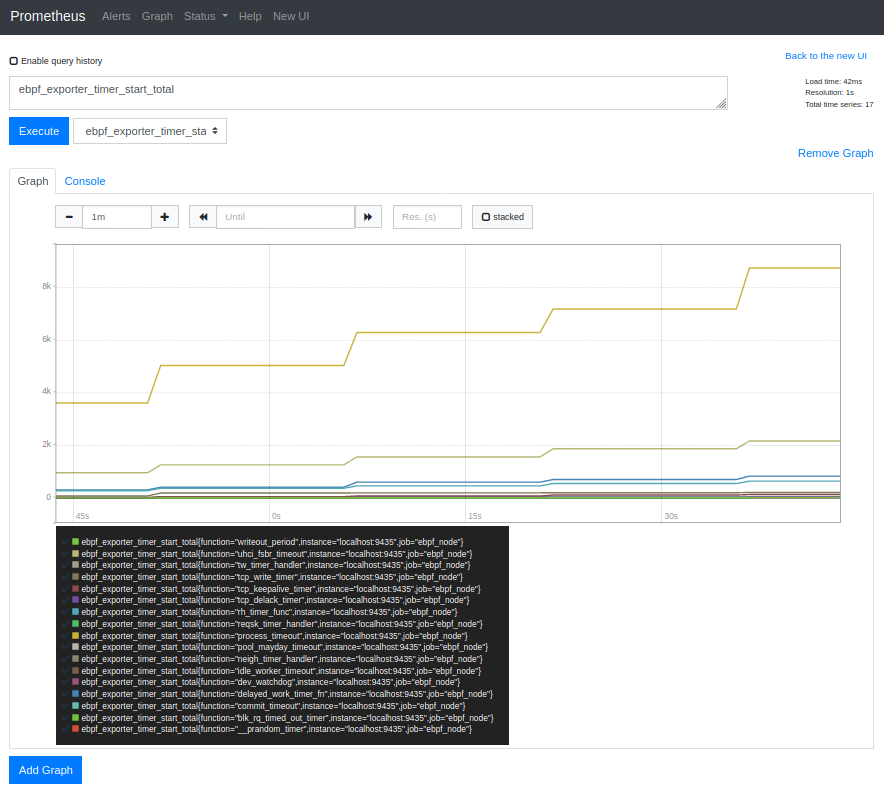

当然,我们也可以对这些eBPF提取的数据进行可视化展示:

4.3 配置文件代码分析

第一部分定义prometheus可识别的特定格式的数据:

programs:
  - name: timers
    metrics:
      counters:
        - name: timer_start_total
          help: Timers fired in the kernel
          table: counts
          labels:
            - name: function
              size: 8
              decoders:
                - name: ksym

该部分定义了一个名为timers的程序。定义了一个名为timer_start_total的指标,用于对系统中计时器的使用次数进行计数。定义了一个名为function的标签,用来向prometheus提供调用了计时器的函数名,指定了转换函数为ksym

第二部分定义附加到BPF程序的探针:

    tracepoints:
      timer:timer_start: tracepoint__timer__timer_start

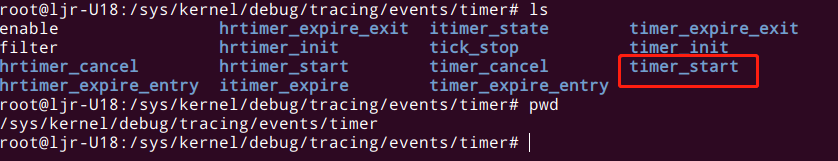

该部分定义了使用tracepoint跟踪timer_start,其中,跟踪点是timer:timer_start,这个在内核/sys/kernel/debug/tracing/events/timer中可以找到:

第三部分定义要执行的BPF程序:

    code: |
      BPF_HASH(counts, u64);
      // Generates function tracepoint__timer__timer_start
      TRACEPOINT_PROBE(timer, timer_start) {
          counts.increment((u64) args->function);
          return 0;
      }

该部分定义了timer_start函数触发时的BPF程序,它是内嵌在ebpf_exporter的YAML文件中,ebpf_exporter使用bcc编译程序,所以可以使用bcc的所有宏和helper。上述BPF代码中用到的函数,可以在bcc官方文档中查到。

参考链接:https://github.com/iovisor/bcc/blob/master/docs/reference_guide.md#bpf-c

5. 总结

eBPF技术跟踪内核无比强大,几乎可以跟踪内核中的任意函数,bcc工具使得编写eBPF程序更加高效,ebpf_exporter 结合了 eBPF & bcc 的优势,对接 prometheus 和 granafa ,使得自定义监控系统更加安全和高效,同时也可以很方便的使用eBPF技术监控集群,并对其数据进行存储和可视化展示。
